Ultra-Drain Guard |
|
Oil & Sediment
Model |
Oil & Sediment Plus
Model |
Part#
9217, 48"L x 36"W x 18"H (1-Pack)
(1220 mm x 915 mm x 458 mm)
Part# 9356, 60"L x 60"W x 18"H (1-Pack)
(1524 mm x 1524 mm x 458 mm)
Part# 9218, 48"L x 36"W x 18"H (10-Pack) |
Part#
9219, 48"L x 36"W x 18"H (1-Pack)
(1220 mm x 915 mm x 458 mm)
Part# 9358, 60"L x 60"W x 18"H (1-Pack)
(1524 mm x 1524 mm x 458 mm)
Part# 9220, 48"L x 36"W x 18"H (10-Pack) |
Weight: 1
lbs. (1/2 kg) (Part# 9217)
2 lbs. (1 kg) (Part# 9356) |
Weight: 2
lbs. (1 kg) (Part# 9219)
3 lbs. (1.5 kg) (Part# 9358) |
Performance -
Oil: Up to .87 gallons (3.5 L)

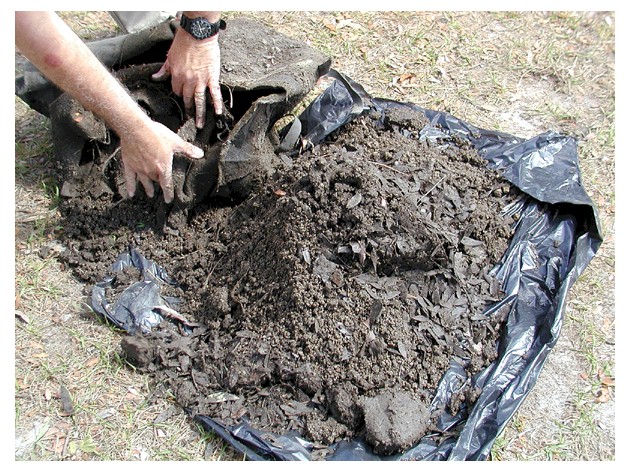

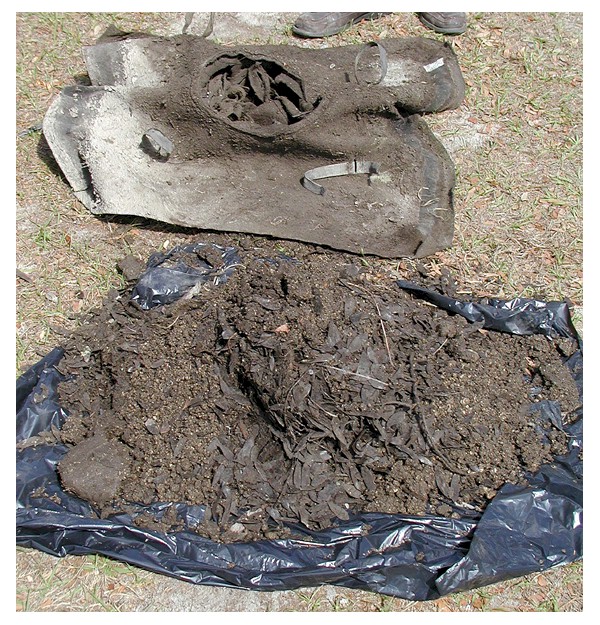

Sediment: Up to 40 lbs. (18 kg) |
Performance -
Oil: Up to 1.38 gallons (5 L)
Sediment: Up to 40 lbs. (18 kg) |
|
* The total water flow rate through the DrainGuard in new condition
is in excess of 500 gpm. The bypass rate is approximately 700 gpm. |
|
Trash & Debris Model |
|
Part# 9227 (1-Pack) • Part# 9229 (10-Pack) |
Dimensions: 48"L x 36"W x 18"H
(1220 mm x 915 mm x 458 mm) |
Weight: 1
lbs. (1/2 kg) |
|

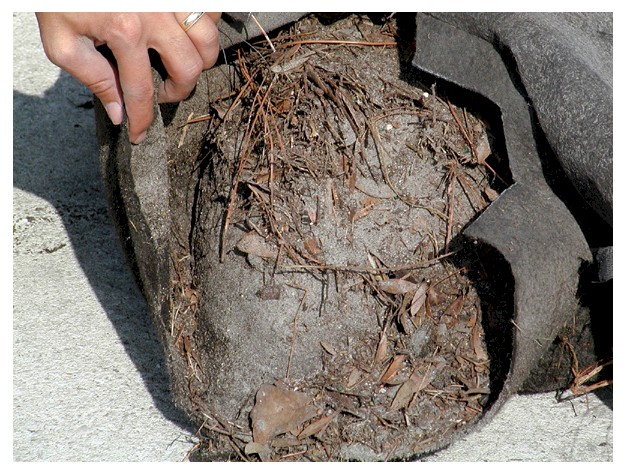

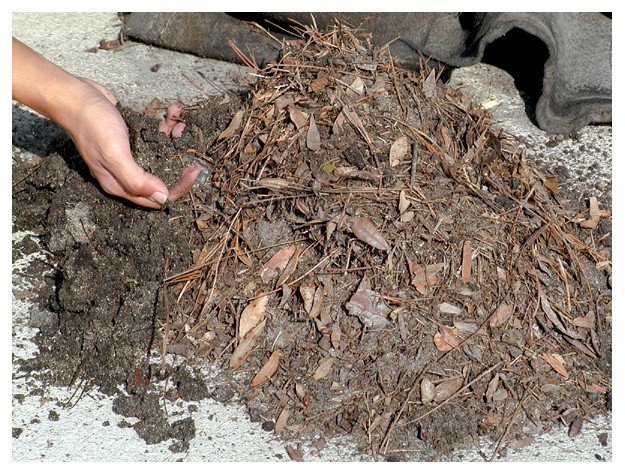

Performance - 1 cu. ft. (28 L) - before reaching bypass ports |
|
Options:,
Grate Lifter (Part# 9234),
Grate Hook (Part# 9235),
Retainers (Part# 9237 or 9238) |
|
Compliance: 40 CFR 122.26 |
|
Instructions |
|

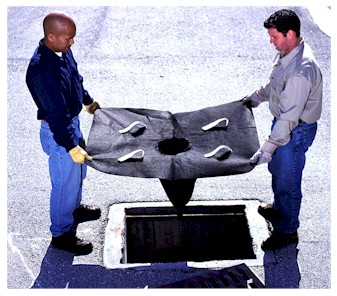

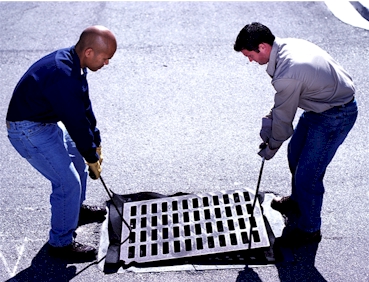

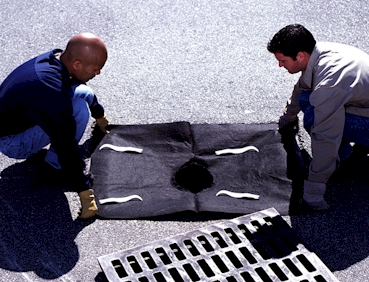

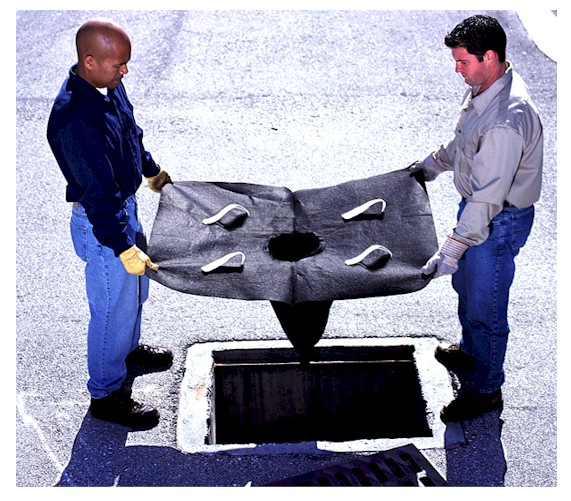

Installation Guide |
|
Material Specifications |
X-TEX Specifications |
|
Are Drain Guards Effective? |
|
See the results of a study conducted by the University of
California on the Ultra-Drain Guards and other catch basin filters. |
|
Ultra-Drain Guards have been approved by DOTs in
North Carolina,
Oregon,
Mississippi and Texas. |
|
Drain Guard FAQs |
|
U.S. Patent No. 5,372,714; 5,575,925; 6,632,501 |
